ER Collet Nuts
Discover our range of ER Collet Nuts designed for precision CNC and milling applications. The ER Collet Nuts provide secure clamping and high-performance for ER11, ER16, ER20, ER25, ER32, ER40, and ER50 collet sizes. Perfect for high-speed operations with optimal balance and durability.
Available ER Collet Nuts

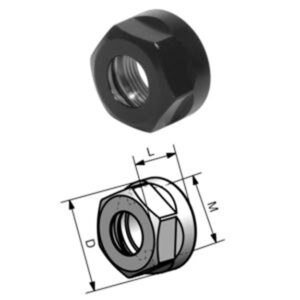

ER Collet Nuts – Type Specifications
| ER Nut Type | Model | D (mm) | L (mm) | Thread |
| ER Nut-Hex / A | ER11 | 19 | 11.3 | M14×0.75P |
| ER Nut-Hex / A | ER16 | 28 | 17.5 | M22×1.5P |
| ER Nut-Hex/ A | ER20 | 34 | 19 | M25×1.5P |
| ER Nut-Mini / M | ER11 | 16 | 12 | M13×1.75P |
| ER Nut-Mini / M | ER16 | 22 | 18 | M19×1.0P |
| ER Nut-Mini / M | ER20 | 28 | 19 | M24×1.0P |
| ER Nut-UM | ER25 | 42 | 20 | M32×1.5P |
| ER Nut-UM | ER32 | 50 | 22.5 | M40×1.5P |
| ER Nut-UM | ER40 | 63 | 25.5 | M50×1.5P |
| ER Nut-UM | ER50 | 78 | 35.5 | M64×2.0P |
Key Features of ER Collet Nuts
- Precision Machining: ER collet nuts ensure precise tool holding, minimising runout and improving machining accuracy.
- Durable Construction: Made from high-strength materials, these collet nuts are designed to withstand high-speed machining environments.
- Wide Range of Sizes: Available in sizes from ER11 to ER50, ensuring compatibility with a variety of CNC tool holders and applications.
- Versatile Applications: Suitable for use in CNC machining centers, milling machines, and turning machines, allowing for flexibility in various machining tasks.
Applications
- CNC machining centers
- Precision milling and turning
- High-speed tool holding for aerospace, automotive, and general manufacturing industries
