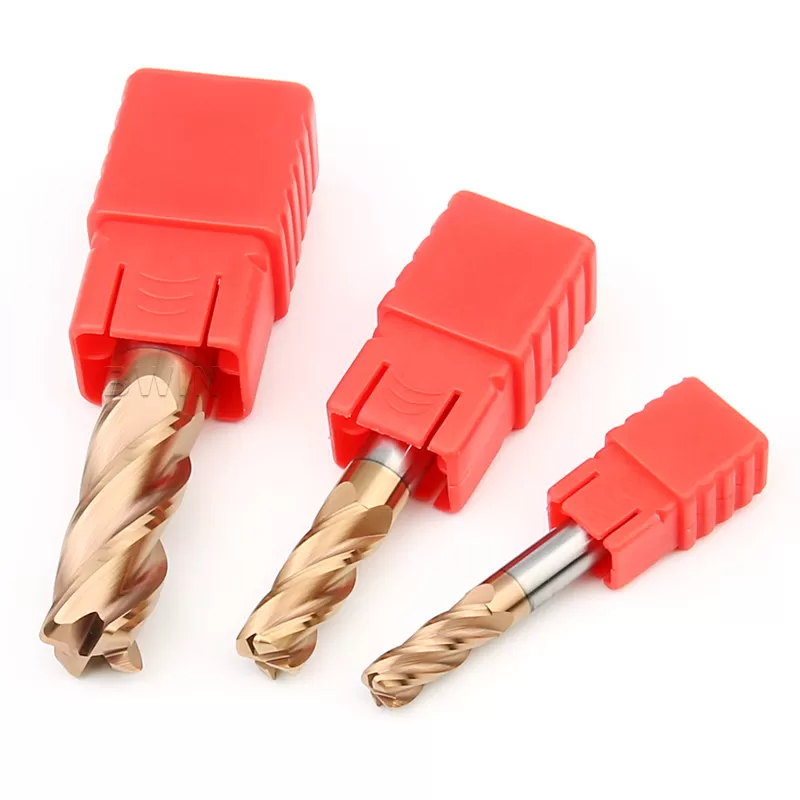

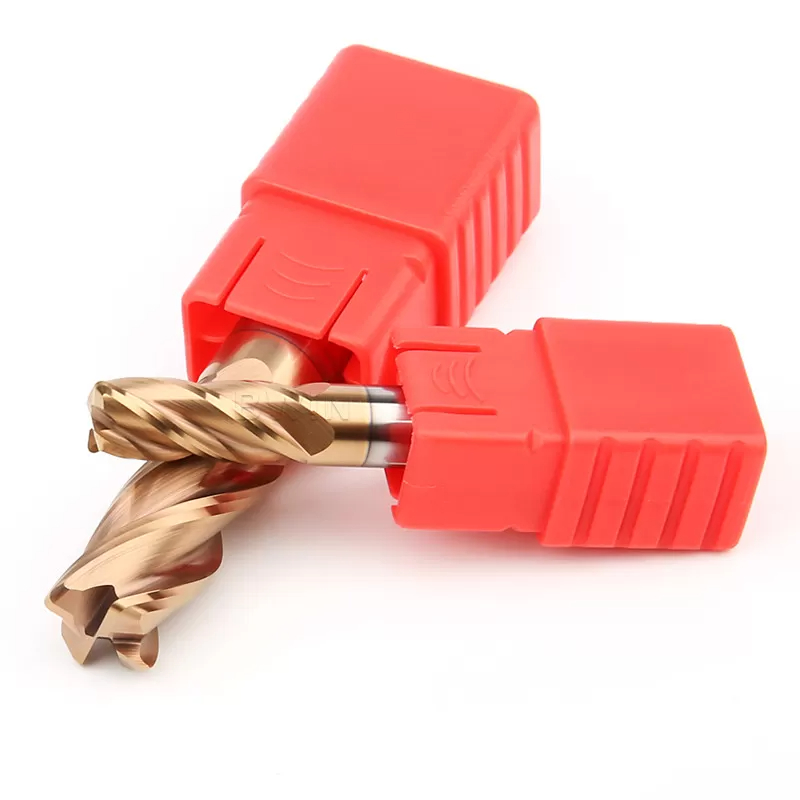

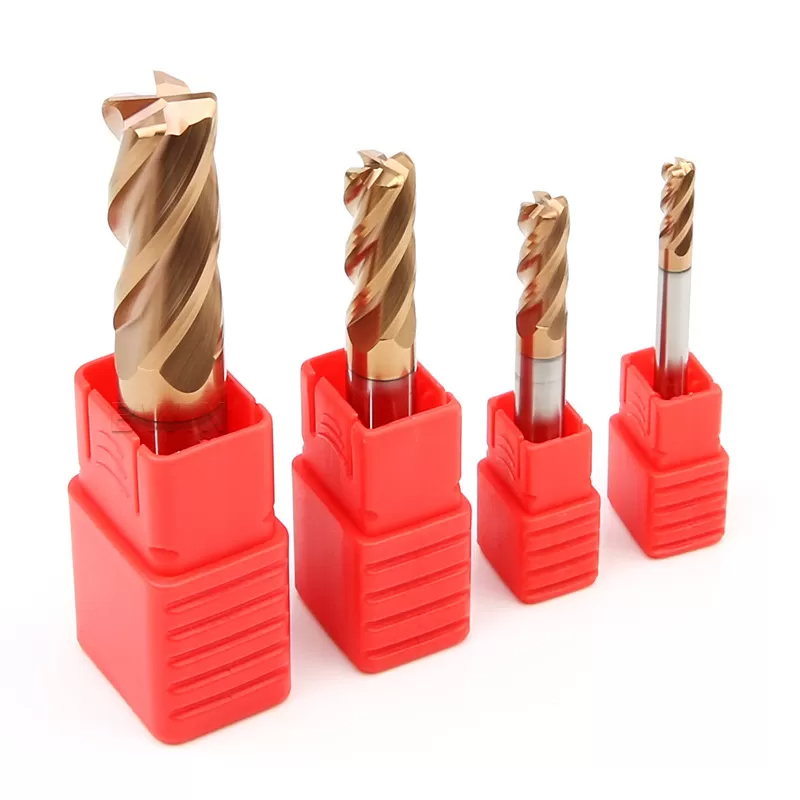

Product Description
Characteristic:
- High hardness
- Good wear resistance
- Corrosion resistance
- High production efficiency
- Good chip removal performance
- Thermal shock resistance
Carbide material introduction
| Item Grade |
HRC45
(YG10X )
|
HRC55
(YL10.2 & WF25)
|
HRC60
(Germany K44 &K40)
|
HRC65
(Sandvik H10F)
|
| Details | Grain size 0.7um Co10% Flexural strength 3320N/mm2 |
Grain size 0.6um Co10% Flexural strength 4000N/mm2 |
Grain size 0.5um Co12% Flexural strength 4300N/mm2 |
Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
| Application | Suitable for general steel | General steel, stainless steel, cast iron | High hard material, steel, cast iron, etc | Titanium alloy, high-temperature alloy, harden material, etc |
| Coating Classifying and Advantage | |||||
| Item | Coating Type | AlTiN | TiAlN | TiSiN | NaCo |
|
Characteristic
|
Hardness (HV) | 3300 | 2800 | 4300 | 42(GPA) |
| Thickness (UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
| Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | |
| Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
| Colour | Black | Bronze | Bronze and gold | Blue | |
|
Advantages
|
High heat stability |
Normally cutting
|
Suitable for heavy cutting, and high hardness cutting | For high precision cutting | |
| Suitable for high speed, dry cutting | Suitable for cutting mould steel,
stainless steel
|
Suitable for high hardness cutting, mould steel processing | |||
| Most suitable for carbide cutting tools, turning insert | |||||
Applications of carbide end mill
Machinable workpieces include cast iron, alloy steel, carbon steel, tool steel, quenched and tempered steel, stainless steel, copper, aluminium alloy, copper alloy, plastic, wood, magnesium alloy, zinc alloy, aluminium parts, etc
Product specifications of carbide end mill
| Specification | Flute Dia(D) | Flute length(C) | Shank dia(D) | Overall length(L) |
| Φ1x3Cx4x50L | 1.0 | 3 | 4 | 50 |
| Φ2x6Cx4x50L | 2.0 | 6 | 4 | 50 |
| Φ3x8Cx4x50L | 3.0 | 8 | 4 | 50 |
| Φ4x10Cx4x50L | 4.0 | 10 | 4 | 50 |
| Φ5x13Cx6x50L | 5.0 | 13 | 6 | 50 |
| Φ6x15Cx6x50L | 6.0 | 15 | 6 | 50 |
| Φ8x20Cx8x60L | 8.0 | 20 | 8 | 60 |
| Φ6x20Cx6x75L | 6.0 | 20 | 6 | 75 |
| Φ8x25Cx8x75L | 8.0 | 25 | 8 | 75 |
| Φ10x25Cx10x75L | 10.0 | 25 | 10 | 75 |
| Φ12x30Cx12x75L | 12.0 | 30 | 12 | 75 |
| Φ10x40Cx10x100L | 10.0 | 40 | 10 | 100 |
| Φ12x45Cx12x100L | 12.0 | 45 | 12 | 100 |
| Φ14x40Cx14x100L | 14.0 | 40 | 14 | 100 |
| Φ16x40Cx16x100L | 16.0 | 40 | 16 | 100 |
| Φ18x40Cx18x100L | 18.0 | 40 | 18 | 100 |
| Φ20x45x20x100L | 20.0 | 45 | 20 | 100 |
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill, the number of Flute is 4F, 5F, 6F, 8F and the logo could be customized.
Instructions of carbide end mill
1. Before using the carbide end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the carbide extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.
5. Note: Not suitable for low-speed machines such as rotary table and electric hand drill.
