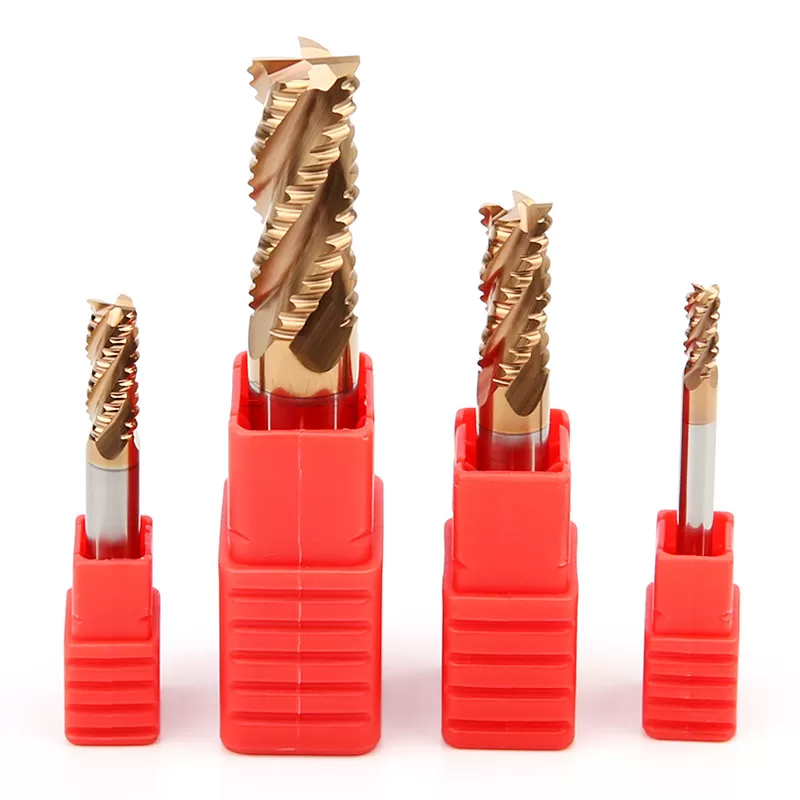

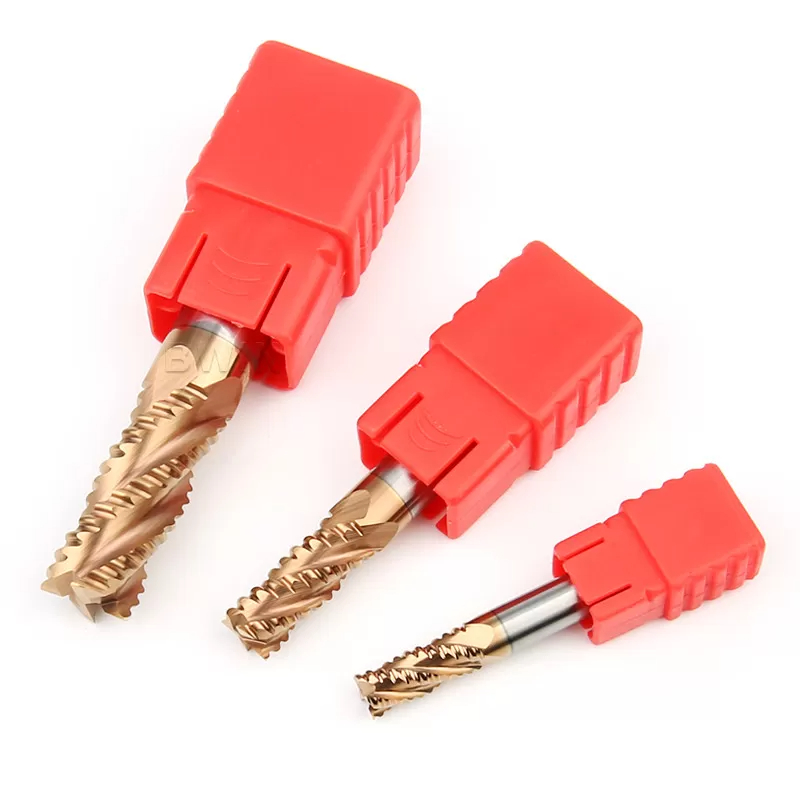

Ripper Cutter HRC55

Description

Features:

High hardness
Good wear resistance
Sharp and long-lasting
Smooth chip breakage
High durability

Description:

Adopting a brand new fine particle tungsten steel base material with high wear resistance and strength, imported passivation equipment to increase wear resistance, it belongs to a versatile milling cutter for high hardness and high-speed cutting applications; Carefully grinding ensures that the cutting edge of the tool is free of burrs, increasing its service life; Adopting a new U-shaped groove design to increase chip removal space, the chip removal is smoother during strong cutting, and the high-precision cutting surface is more glossy; The 35 ° helix angle makes the milling cutter more wear-resistant, reduces product burrs, and is not easy to stick to the cutter; The round and smooth handle, combined with precise chamfering, saves tool replacement time and greatly improves work efficiency.

Milling Parameters:

HRC45 Carbide Roughing End Mill

Tool length

fz&v

Short

Long1

0.9

Overlength

0.8

Speciality

0.6

Type

Material

Strength
N/mm²Hardness
HRC

Cooling

Air

Dry cutting

Lubricating fluid

P1.1

Non alloy structural steel, free cutting structural steel, carburized steel and quenched and tempered steel

<700

√

P1.2

quenched and tempered steel

<1200

√

P2.1

Alloyed nitrided steel, carburized steel and quenched and tempered steel

<900

√

P2.2

Tool steel, bearing steel, spring steel and high-speed steel

<1400

√

P3.1

Tool steel, bearing steel, spring steel and high-speed steel

<900

√

P3.2

Tool steel, bearing steel, spring steel and high-speed steel

<1500

√

M1.1

austenitic stainless steel

＜700

√

M1.2

Ferritic/austenitic (bicrystal) stainless steel

＜1000

√

M2.1

Austenitic stainless cast steel

＜700

√

M3.1

Ferritic/austenitic (bicrystal) stainless cast steel

＜1000

√

K1.1

Flake graphite cast iron (gray cast iron), GJL

＜300

√

K2.1

Ductile iron, GJS

＜500

√

K2.2

Ductile iron, GJS

500-800

√

K2.3

Ductile iron, GJS

＞800

√

K3.1

Vermicular graphite cast iron, GJV; Malleable cast iron, GJM

＜500

√

K3.2

Vermicular graphite cast iron, GJV; Malleable cast iron, GJM

＞500

√

Slotting
Vc (m/min)	fz(mm/tooth)
	Diameter
	2	4	6	8	10	12	14	16	18	20
112	0.01	0.018	0.026	0.034	0.041	0.048	0.054	0.06	0.065	0.069
92	0.01	0.017	0.025	0.032	0.038	0.045	0.0505	0.056	0.061	0.065
100	0.01	0.018	0.026	0.034	0.041	0.048	0.054	0.06	0.065	0.069
72	0.009	0.015	0.022	0.028	0.034	0.04	0.045	0.05	0.054	0.058
64	0.01	0.018	0.025	0.032	0.039	0.045	0.051	0.057	0.062	0.066
56	0.009	0.016	0.023	0.029	0.036	0.041	0.0465	0.052	0.056	0.06
44	0.007	0.012	0.018	0.023	0.027	0.032	0.036	0.04	0.043	0.046
68	0.01	0.018	0.025	0.033	0.04	0.046	0.052	0.058	0.063	0.067
44	0.005	0.009	0.012	0.016	0.019	0.022	0.025	0.028	0.030	0.032
32	0.006	0.011	0.015	0.02	0.024	0.028	0.0315	0.035	0.0375	0.04
28	0.005	0.009	0.013	0.016	0.02	0.023	0.031	0.039	0.036	0.033
32	0.007	0.012	0.017	0.021	0.026	0.03	0.034	0.038	0.041	0.044
32	0.005	0.009	0.013	0.017	0.021	0.024	0.027	0.03	0.0325	0.035
120	0.017	0.031	0.044	0.056	0.068	0.08	0.09	0.1	0.05575	0.0115
112	0.015	0.026	0.037	0.048	0.058	0.068	0.0765	0.085	0.0915	0.098
92	0.012	0.022	0.031	0.039	0.048	0.056	0.063	0.07	0.0755	0.081
52	0.007	0.012	0.018	0.023	0.027	0.032	0.036	0.04	0.043	0.046
80	0.012	0.022	0.031	0.039	0.048	0.056	0.063	0.07	0.0755	0.081
76	0.01	0.018	0.026	0.034	0.041	0.048	0.054	0.06	0.0645	0.069

Roughing
Vc (m/min)	fz(mm/tooth)
	Diameter
	2	4	6	8	10	12	14	16	18	20
228	0.018	0.031	0.045	0.057	0.070	0.081	0.091	0.101	0.110	0.118
208	0.017	0.029	0.042	0.054	0.065	0.071	0.083	0.095	0.103	0.11
184	0.018	0.031	0.045	0.057	0.070	0.081	0.091	0.101	0.110	0.118
144	0.015	0.026	0.037	0.048	0.058	0.068	0.077	0.085	0.092	0.098
132	0.017	0.03	0.042	0.054	0.066	0.077	0.087	0.096	0.104	0.112
112	0.015	0.027	0.039	0.05	0.060	0.07	0.079	0.088	0.095	0.102
92	0.012	0.021	0.03	0.038	0.046	0.054	0.061	0.068	0.073	0.078
140	0.017	0.03	0.043	0.055	0.067	0.078	0.088	0.098	0.106	0.114
92	0.008	0.015	0.021	0.027	0.032	0.038	0.043	0.047	0.051	0.055
60	0.011	0.018	0.026	0.033	0.041	0.047	0.053	0.059	0.064	0.069
56	0.009	0.015	0.022	0.028	0.034	0.039	0.044	0.049	0.053	0.057
68	0.011	0.02	0.028	0.036	0.044	0.051	0.0575	0.064	0.069	0.074
60	0.009	0.016	0.022	0.029	0.035	0.041	0.046	0.051	0.055	0.059
248	0.03	0.052	0.074	0.096	0.0116	0.135	0.152	0.169	0.1825	0.196
228	0.025	0.044	0.063	0.081	0.099	0.115	0.1295	0.144	0.155	0.166
184	0.021	0.037	0.052	0.067	0.081	0.095	0.1065	0.118	0.1275	0.137
104	0.012	0.021	0.03	0.038	0.046	0.054	0.061	0.068	0.073	0.078
164	0.021	0.037	0.052	0.067	0.081	0.095	0.1065	0.118	0.1275	0.137
156	0.018	0.031	0.045	0.057	0.07	0.081	0.091	0.101	0.1095	0.118

Finish
Vc (m/min)	fz(mm/tooth)
	Diameter
	2	4	6	8	10	12	14	16	18	20
332	0.028	0.05	0.07	0.091	0.11	0.128	0.144	0.16	0.173	0.186
272	0.026	0.046	0.066	0.085	0.103	0.12	0.135	0.15	0.162	0.173
304	0.028	0.05	0.07	0.091	0.11	0.128	0.144	0.16	0.173	0.186
212	0.023	0.041	0.059	0.076	0.092	0.107	0.121	0.134	0.145	0.155
196	0.027	0.047	0.067	0.086	0.104	0.122	0.137	0.152	0.165	0.177
168	0.024	0.043	0.061	0.079	0.095	0.111	0.125	0.139	0.150	0.161
136	0.019	0.033	0.047	0.06	0.073	0.085	0.096	0.107	0.116	0.124
204	0.027	0.048	0.068	0.088	0.106	0.124	0.140	0.155	0.168	0.18
136	0.013	0.023	0.033	0.042	0.051	0.06	0.068	0.075	0.081	0.087
92	0.016	0.029	0.041	0.053	0.064	0.075	0.0845	0.094	0.101	0.108
84	0.014	0.024	0.034	0.044	0.053	0.062	0.0695	0.077	0.0835	0.09
100	0.018	0.031	0.045	0.057	0.07	0.081	0.0915	0.102	0.11	0.118
92	0.014	0.025	0.035	0.045	0.055	0.064	0.072	0.08	0.0865	0.093
364	0.047	0.083	0.117	0.151	0.183	0.214	0.2405	0.267	0.149	0.031
332	0.04	0.07	0.1	0.128	0.156	0.182	0.2045	0.227	0.245	0.263
272	0.033	0.058	0.082	0.106	0.128	0.149	0.168	0.187	0.202	0.217
152	0.019	0.033	0.047	0.06	0.073	0.085	0.096	0.107	0.1155	0.124
240	0.033	0.058	0.082	0.106	0.128	0.149	0.168	0.187	0.202	0.217
228	0.028	0.05	0.07	0.091	0.011	0.128	0.144	0.16	0.173	0.186

Note:

If the following carbide roughing end mill cannot meet your requirements, we support OEM customized production. The diameter of 0.2mm to 25mm, the total length of 50mm to 200mm, 4F, 5F, 6F, 8F and logo can be customized, including inch size end milling cutter. Please contact us to select or customize non-standard carbide roughing end mill according to your needs.

Specification	Flute Dia(D)	Flute Length (C)	Shank Dia(D)	Overall Length(L)
Φ410d4*50L	4	10	4	50
Φ513d5*50L	5	13	5	50
Φ615d6*50L	6	15	6	50
Φ820d8*60L	8	20	8	60
Φ1025d10*75L	10	25	10	75
Φ1230d12*75L	12	30	12	75
Φ835d8*100L	8	35	8	100
Φ1040d10*100L	10	40	10	100
Φ1245d12*100L	12	45	12	100
Φ1445d14*100L	14	45	14	100
Φ1645d16*100L	16	45	16	100
Φ1845d18*100L	18	45	18	100
Φ2045d20*100L	20	45	20	100

Instructions:

1. Before using the carbide roughing end mill, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.

2. The shorter the carbide e extends out of the collet, the better. If the tool extends out longer, reduce the speed, feed speed or cutting amount.

3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount until the situation is improved.

4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of carbide end mill.

5. Note: Not suitable for low speed machines such as rotary table and electric hand drill.

Applications:

Pre-hardened Steel, stainless steel, Die steel, steel plate, Heat-resistant steel,pipe, copper and aluminum, cast iron, Nonferrous Metal, Wood, Plastic,FRP and sO on. General-purpose operation slotting, rilling, profiling.

Additional information

Brand	BWIN
Shank Diameter	8mm, 10mm
