Description

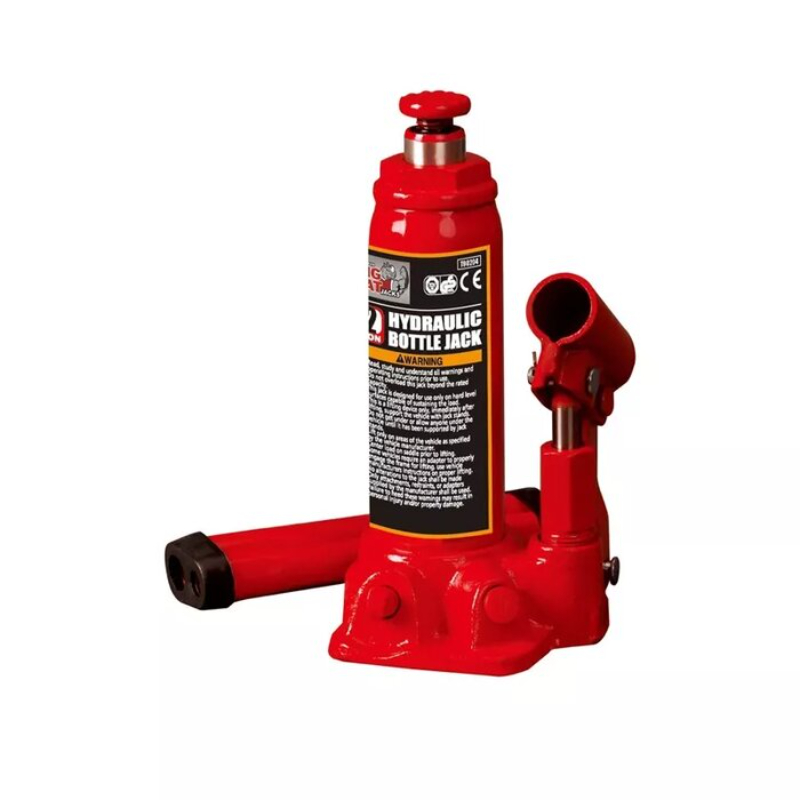

Bottle Jacks
Industrial Quality With CE and GS Tuv.
Mark of Approval With Built In Overload Safety Valve

Features:
Heat treated extension scrw allows low pickup height adjustment and maximum lift height.
Serrated, heat treated saddle provides generous lifting area and secure grip.
A wide, rugged base provides stability and strength. All models critical stress points are reinforced for added durability and dependability.
Product Information:
This Bottle Jack product is designed for lifting.
The jack can be used vertically or angled to 3 degrees from vertical position.
After lifting, loads must be immediately supported by jack stands.
Each model is suitable for use in lifting or positioning vehicles, machinery, houses and/or other building structures.

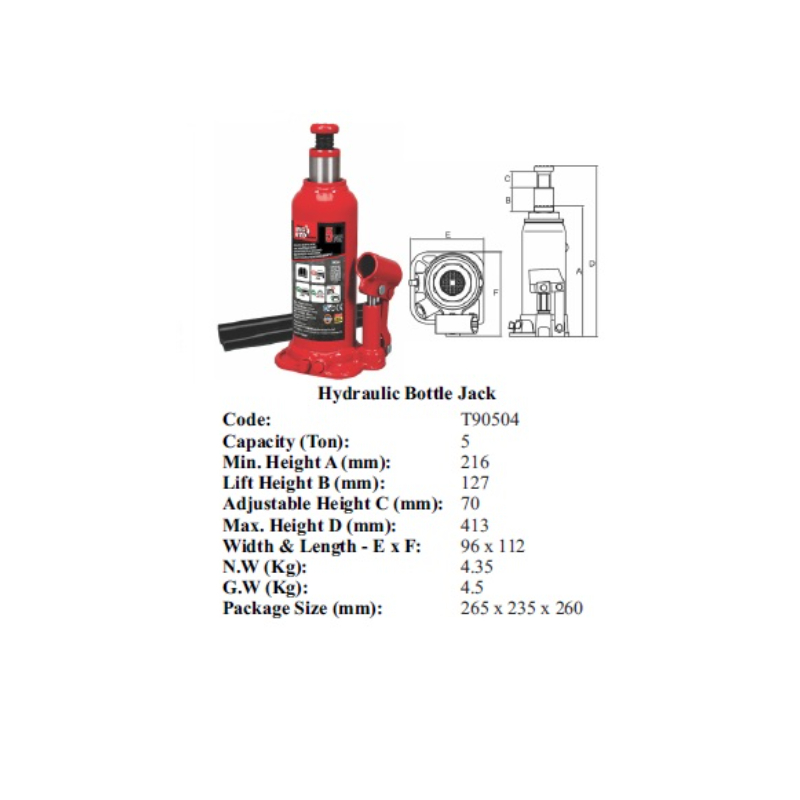

Capacity (Ton): 5
Min. Height (A) (mm): 216
Lift Height (B) (mm): 127
Adjustable Height (C) (mm): 70
N.W (Kg): 4.35
G.W (Kg): 4.5
Package Size (mm): 265 x 235 x 260
Max. Height (D) (mm): 413
Width & Length (ExF) (mm): 96 x 112
