Description

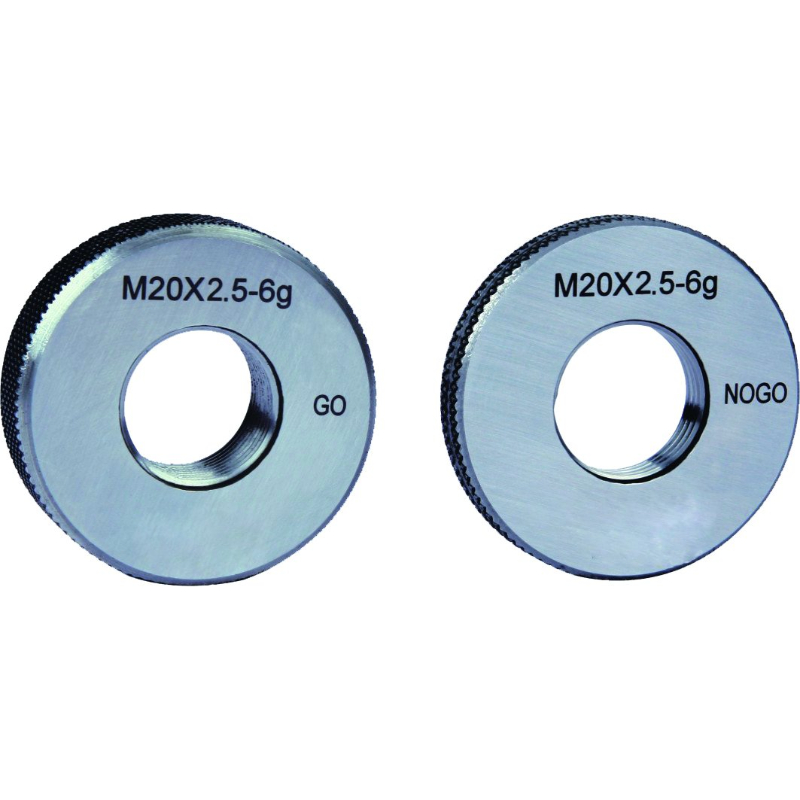

A thread ring gauge is designed to check the correctness of the thread, to include thread depth and pitch diameter (to the given pitch / TPI).

Go Thread Gauge Fine

The primary purpose of the go thread gauge is to measure the mating size of external threads. The go gauge is screwed onto the threaded item to check the largest diameter of each individual thread.

A go gauge can also be used to determine if the unthreaded flank is long enough to ensure proper function. Using a go thread gauge is simple. You simply screw the go gauge onto the threaded item.

If the thread tolerances are in line with your specifications, you will be able to screw the go gauge up the full length of the threaded area by hand without using any significant force.

If you are unable to complete the screwing process with relative ease, the threaded item doesn’t meet parameters and must be discarded.

Technical specification:

• Grade: 6g
• Meet ISO1502
• Hardness: HRC60-62

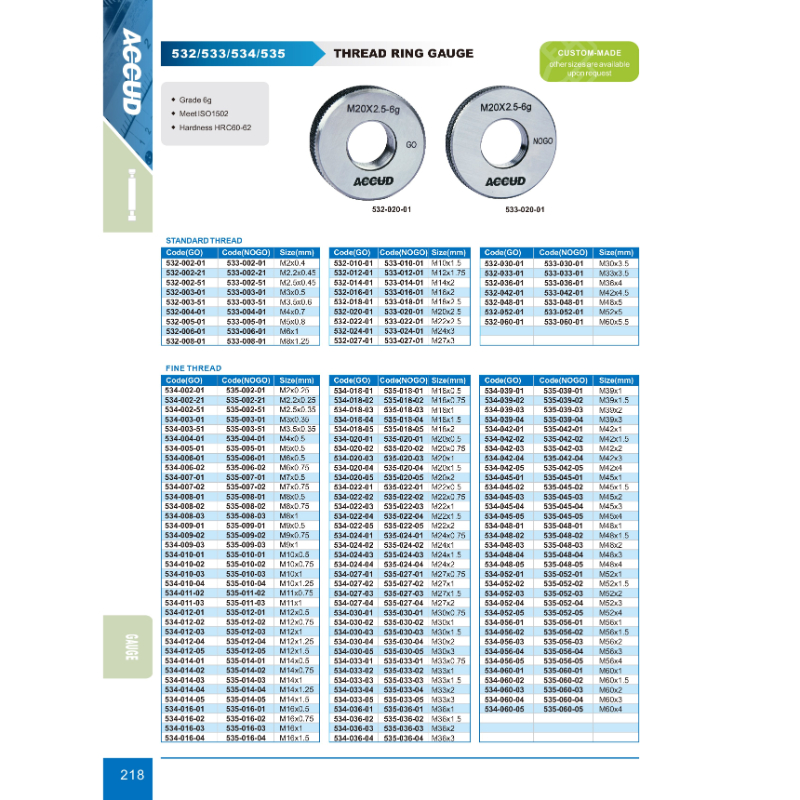

Dimensions:
